Porsche 911 - Model Year 1986

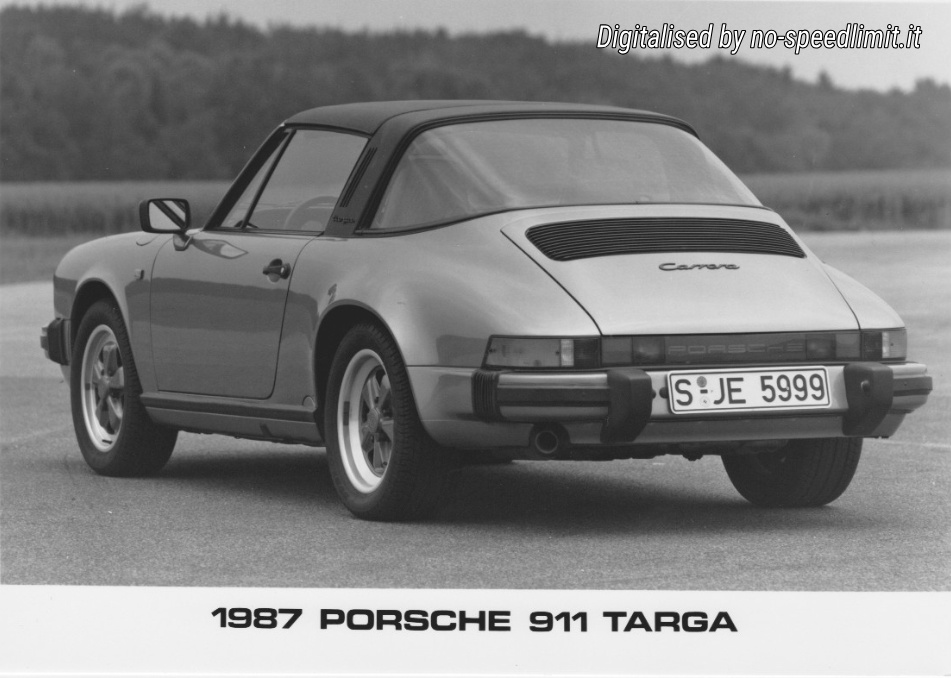

1987 Porsche 911 Carrera (USA)
Opening the era of the new G50 gearbox with revised pattern
Improvements to the 1987 model 911 Coupe, Targa and Cabriolet -- Porsche's classic race-bred sports cars -- include a hydraulically assisted new clutch, a new five-speed gearbox and a gain in horsepower through use of optimized combustion developed from the company's racing engines.
The new clutch and transmission allow smoother movements from gear to gear, with a changed gear pattern.
The six-cylinder Carrera engine with optimized combustion has gained 14 horsepower without any total weight increase and now produces a total of 214 hp with a top speed on a test track of 149 mph and a 0 to 60 mph time of 6.1 seconds under test conditions.
The 911 Carrera has fresh colors and additional leather trim options as well as new fully adjustable electric comfort seats with additional lumbar support.
PORSCHE CARS NORTH AMERICA: 1987 911. MANUFACTURER'S SUGGESTED RETAIL PRICES
911 Carrera Coupé | $38,500 |
911 Carrera Targa | $40,500 |
911 Carrera Cabrio | $44,500 |
TECHNICAL DATA
ENGINE | |
Bore in inch | 3.74 |
Stroke in inch | 2.93 |
Displacement in in.3 | 193.1 |
Compression ratio | 9.5:1 |
net. power SAE J 1349 in HP | 214 |
At engine speed in rpm | 5900 |
net. torque SAE 1349 in lbft | 195 |
At engine speed in rpm | 4800 |
Speed governed by stopping fuel flow at rpm | 6250±50 |
Fuel grade in CLC (RON) unleaded fuel | 91CLC (95 RON) |
Engine weight (dry) lbs | 485 |
Battery | 12V 88amp |
Alternator power | 1260 W |
Cooling System Type | Air cooled |
Fan drive | Crankshaft via belt |
Engine Lubrication and oil cooling | Dry sump with separated oil tank thermostatically contolled oil cooling, full flow oil filter |
Emission Control | 3-way catalyst, oxygen sensor, secondary air injection |
Fuel System Type | DME |
Fuel Delivery | Electric pump |
POWER TRANSMISSION |
|
Clutch | Single disc, dry, hydraulically activated |
Transmission | Engine mounted, rear |
Number of gears (ranges) | 5 forward, 1 reverse |
Gear Ratios | |
1st gear | i=3.500 |
2nd gear | i=2.059 |
3rd gear | i=1.409 |
4th gear | i=1.125 |
5th gear | i=0.889 |
Reverse | i=2.857 |
Final drive | Hypoid drive, pinion & differential |
Final drive ratio | 3.44:1 |
LSD (M-equipment) locking value | 40% |
RUNNING GEAR |
|
Front Axle | Independent MacPherson strut |
Springs | Torsion bars |
Shock absorbers | Hydraulic double-acting |
Steering | Rack and pinion |
Steering wheel dia. in inch | 14.96 |
Steering wheel ratio in center position | 17.78:1 |
Turning circle dia. in ft. | 35.9 |
Rear Axle | Independent semi-trailing arms |
Springs | 1 transverse torsion bar per wheel |
Shock absorbers | Hydraulic double-acting |
Brakes Service Brake |
Power assisted, ventilated discs |
Brake disc diameter in inch | |
Front | 11.12 |
Rear | 11.41 |
Effective brake disc dia. in inch | |
Front | 8.97 |
Rear | 9.60 |
Effective total pad area in sq.in. | 39.83 |
Wheel Rims and Tires Standard tires Tire Siye on rim |
|
Front | 195/65 VR 15 6Jx15 |
Rear | 215/60 VR 15 7Jx15 |
Dimensions (inch) | |
Lenght | 168.94 |
Width | 65.04 |
Height | 52.0 |
Wheelbase | 89.45 |
Track (with rims) inch | |
Front | 53.9 |
Rear | 54.3 |
Ground clearence (at total max weight) inch | 5.12 |
Curbweight (total) lbs | 2756 |
Max. axle load lbs | |
*Front | 1433 |
*Rear | 2094 |
Max total weight lbs | 3417 |
*The max. total weight, however, must not be exceeded. | |
Capacities US gal | |
Engine oil | 3.42 |
Manual transmission + differential | 0.80 |
Fuel tank | 22.5 |
Brake fluid | 0.05 |
Washing fluid | 2.12 |
Performance | |
Top speed in mph | 149 |
Acceleration in seconds | |
0 to 60 mph | 6.1 |
1/4 mile from standing start - sec | 15.2 |
Miscellaneous: Oil level is measured with oil dipstick. Information in Owner's Manual is applicable.
Engine Oil Specification: | ||
Approved: | API SE SF with combinations | |
API SE/CC - SE/CD - SF/CC - SF/CD | ||
Multigrade Oil: As approved by factory - see Technical Information on engine oils. | ||
Transmission Oil Specification: | ||
Manuals: | Multigrade gear lube 75W90 to MIL-L2105B or API Classification GL5 | |
Automatic Transmission (US gal.): | ATF Dexron 11D, approx. 1.58 total volume; approx. 0.74 converter volume; approx. 0.92 ATF change volume, watch mark on oil filler tank. |
|
Differential of automatic transmission: (US gal.) | final drive: approx. 0.26 of SAE 90 to MIL-L 2105B API Classification GL 5 (filled for service life). |
